The Australia Folding Arm Awning

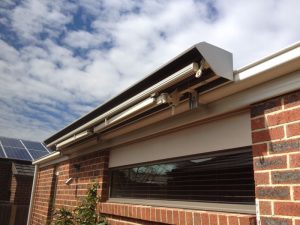

Australia Open Body Folding Arm Awning, Fascia/Rafter Mounted

Are you looking for an immensely strong shade system built to survive harsh local weather? The Australia Folding Arm Awning is one of our most popular designs for both domestic and commercial installations. Because we engineer this system specifically for tough Australian conditions, it delivers exceptional durability.

This versatile awning gives you great sun protection whenever you need it, yet it retracts quickly to maintain your open view. Furthermore, you can purchase it with or without our advanced Pitch Control system. To ensure your investment lasts, every awning includes a generous 5-year product hardware warranty.

5 Year product hardware warranty.

BAT Australia Features

Our most popular Standard Folding Arm Awning
Gives great sun protection when needed and can be retracted when required
Awning width from 1.91m to 12m
Heavy Duty Arms with Stainless Steel Chain
Arm sizes 1600mm, 2100mm, 2600mm, 3100mm & 3600mm
70mm Galvanised Roller Tube with Welded Seam for added strength for awnings up to 5m
78mm Galvanized Roller Tube with Welded Seam for extra strength for awnings over 5m
40mm x 40mm Square Bar
Manual or Motorised operation
7:1 Gearbox is standard for manual awnings
Awnings over 6m should be motorised
Customer Adjustable Pitch Control on each arm is an optional extra – adjustment range 5 degrees to 60 degrees
For awnings up to 7m wide. An extruded aluminium hood and wider front bar can be retrofitted to existing Australia Folding Arm Awnings.
Optional Integrated Arms with LED Lighting. Available in 2.6m, 3.1m and 3.6m projection. Kit price includes 120w 12v transformer, LED Strip ip64 5000k, connectors and wiring. Only available for 2 arm awnings.

Colour Options

The BAT Australia standard frame colour options are White, Ivory, Silver Grey and Anthracite Texture. Other Dulux Duralloy standard or Interpon Texture standard powder-coat colours are available at an additional cost.

Technical Specifications & Wind Ratings

Please review the standard dimensions and certified safety limits below to plan your ideal configuration.

Feature / Attribute	Specification Details
Available Widths	From 1.9m up to a massive 12.0m
Available Projections	1.6m, 2.1m, 2.6m, 3.1m, and 3.6m
Installation Variations	Supports both Wall Fix and Ceiling Fix (for standard and Pitch Control models)
Certified Wind Resistance	Wind Class 2 (European) / Beaufort Force 5 (Australian) • Safely handles maximum wind speeds up to 37kph.

The BAT Australia is assembled here in Melbourne from components by BAT Italy and supplied by Global Awnings. Coolabah Shades custom make the fabrics from a wide range of available colours to suit your requirements.
