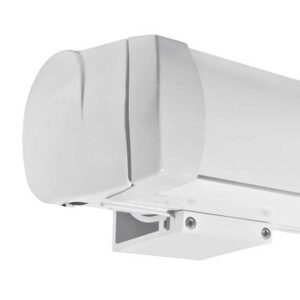

BAT Armony Plus

The BAT ARMONY PLUS is a heavy duty full cassette Folding Arm awning that has a Tipping system and New designed front bar that enables a perfect seal when closed.

This provides protection for both the fabric and components from the elements.

The components for the Bat Armony Plus are Italian designed & manufactured by BAT Italy and imported to Australia by Global Awnings.

The fabric skin is made in our factory in Moorabbin with a wide selection of quality fabric brands and colours available

Features

• Full Cassette awning offering fabric protection and smooth closing
• Width from 2.08m to 7m
• Arm sizes 1600mm, 2100mm, 2600mm, 3100mm & 3600mm
• Heavy Duty Arms with Stainless Steel Chain
• 78mm Galvanised Roller Tube with welded stream for added strength
• Manual or Motorised operation
• 11:1 Gearbox is standard for manual awnings
• Awnings over 6m should be motorised
• Pitch Adjustment from 5 degrees to 40 degrees which is set at installation.
• 120mm Wall Fix Brackets are standard

Colour Options

Standard colours are White and Anthracite Texture.  Other Dulux Duralloy standard or Interpon Textura standard powder-coat colours are available at an additional cost.

           WHITE                                               ANTHRACITE

Wind Rating

Wind Class 2 (European)/Beaufort Force 5 (Australian).

Maximum Wind Speed 37kph.

Specifications

Width 2.08m ↔ 7m

Projection 1.6m, 2.1m, 2.6m, 3.1m & 3.6m

Mounting options

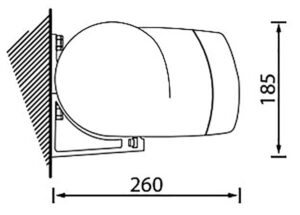

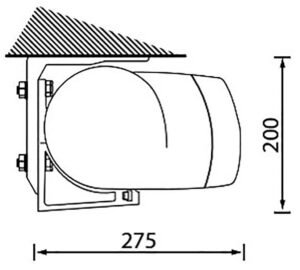

The BAT Armony Plus can be mounted on a wall fixed or Ceiling fix depending on the requirements

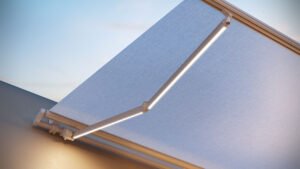

Integrated LED Lighting Kit Available

Integrated Arms with LED Lighting are available with the 2.6m, 3.1m and 3.6m arm projections.

Kit price includes 120w 12v transformer, LED Strip ip64 5000k, connectors and wiring.   The Integrated LED Lighting kit is only available for awnings with 2 arms .
