Giotto

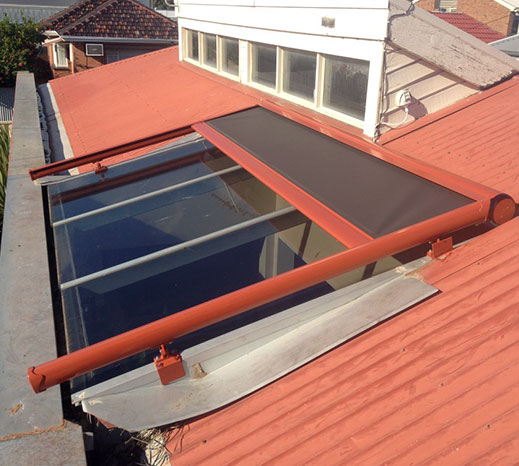

The GIOTTO Fabric Tension System awning has been specifically designed to be fitted over Glass Roofs, or Conservatories, or Pergolas to assist in heat reduction by shading the glass, or the deck.

Fabric is taut when the system is fully open, closed
or somewhere in between.
• Maximum 5 metres wide with a 4 metre projection.
• 78mm Galvanised steel roller tube.
• Deep section front bar encloses the Tension Spring
mechanism.
• The Giotto is always motorized – Gear-Box drive is
not available
• Standard mounting brackets give 80mm clearance
over the mullion. Extra Height brackets giving a
170mm clearance are also available.
• Side fit brackets and Sideways Adjustable brackets
are an available option.
• Twin Models are available – each has its own
motor and can be operated independently
